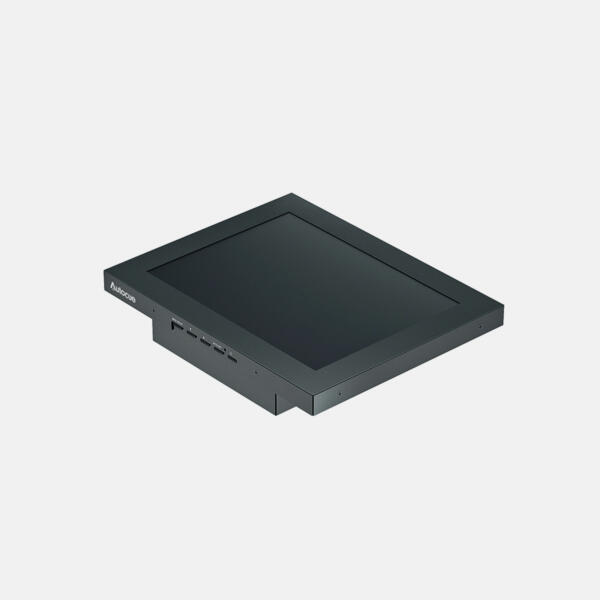

12″ Pioneer High Brightness Monitor
SKU: P7008-0954
- High brightness monitor can be used in any indoor or outdoor light
- Lightweight aluminium housing
- Wide choice of input options
- Combine with Autocue mounting kit to create a complete teleprompter
Find a local dealer
The 12″ Pioneer High Brightness Monitor is readable in any light with its outstanding brightness of 1500 nits and that’s why we use it in our 12″ Pioneer Teleprompters as standard.
The monitor has an aluminium housing that’s super lightweight and tough enough to survive for the long-haul. With HD-SDI, CVBS, VGA, and HDMI inputs to choose from you can be sure the monitor will integrate whether you have a single PC or a full broadcast facility.
This monitor only package includes a power and HDMI cable. Simply combine with an Autocue mounting kit to create a complete teleprompter. If you have an older Autocue teleprompter and want to replace the monitor then you can use the Legacy Mounting Adaptor (P7011-1006) to attach this to your existing hardware.
Display Size | 12" 12" |
Aspect Ratio | 4:3 4:3 |
Brightness | 1500Nits 1500Nits |
Contrast | 1000:1 1000:1 |
Resolution | 1024x768 1024x768 |
Connectivity | 3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA 3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA |
Image Flip | Horizontal & vertical Horizontal & vertical |
Input Voltage | 12V DC 12V DC |
Aux. Output | 12V DC, 3A max 12V DC, 3A max |
Power Consumption | 25W max 25W max |
Power Supply | 110-240V AC 50/60Hz input, 12V DC, 5A max. output 110-240V AC 50/60Hz input, 12V DC, 5A max. output |
Monitor Dimensions | 307 x 245 x 56mm 12.1 x 9.6 x 2.2" |
Monitor Weight | 1.3kg 2.9lbs |
Power Supply Dimensions | 121 x 60 x 35mm 4.8 x 2.4 x 1.4" |
Power Supply Weight | 0.4kg 0.9lbs |
- Monitor
- PSU
- HDMI cable, 10m
- UK/EU or US IEC power cable
