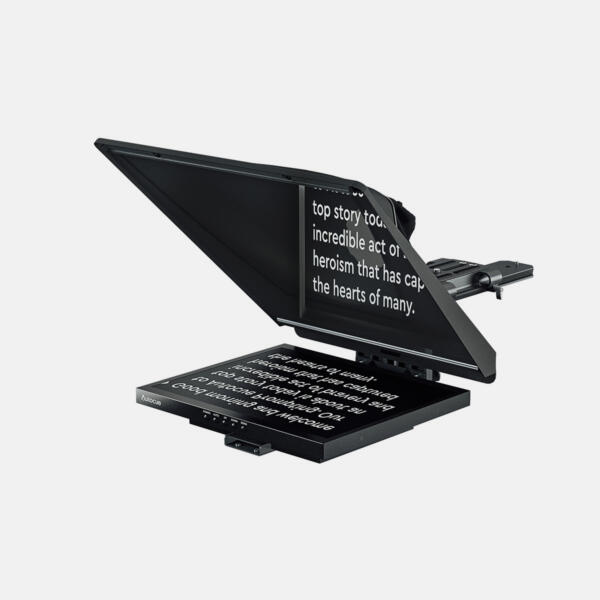

17″ Explorer Teleprompter
SKU: P7010-0901
- Popular teleprompter size
- Simple, toolless setup
- Adapts quickly to different cameras and lenses
- Includes a 12-month Explorer Software license
- Complete package ready to prompt straight out of the box
Find a local dealer
Overview
The 17” teleprompter is many people’s favourite because it’s large enough to be readable in most large studio spaces (max reading range is around 6m/20’), but won’t overwhelm a more modest studio space. It’s also small enough to transport easily, with an optional case available to protect it.
Every Explorer Series prompter is designed with minimal parts that slot together and quickly adjust without tools. The mounting kit will adapt to your gear, so mostly it doesn’t matter what camera and lens you use. If you’re working with a PTZ or a box lens, then we have some specific solutions, but camcorders, digital cine cameras, mirrorless – everything else will fit our standard Explorer Series Teleprompters. Because you can mount the prompter underneath the monitor, you’ll find balancing on your camera support much simpler too.
The monitor has a metal housing that’s tough enough to survive for the long-haul. On the side you’ll find a selection of inputs and if you’re in a hurry we include an HDMI cable to connect to a laptop straight out of the box. The sturdy hood is made from lightweight composite and secures the Autocue 70:30 beamsplitter glass that clearly displays text to the presenter while keeping it invisible to the camera.
Explorer Series Teleprompters come with a one-year license for Explorer Software: our simple, modern prompting application. If you’ve found your prompter of choice why not head over to our software pages to find out more.
Technical Specifications
| Aspect Ratio | 4:34:3 |
| Aux. Output | 5V DC, 2A max.5V DC, 2A max. |
| Brightness | 400Nits400Nits |
| Camera Base To Lens Centre Height Supported | 50 mm to 14 cm1.97 in to 5.51 in |
| Connectivity | HDMI, VGA, CVBSHDMI, VGA, CVBS |
| Contrast | 1000:11000:1 |
| Hood | Medium composite hood with collapsible fabric lens sealMedium composite hood with collapsible fabric lens seal |
| Image Flip | None. Done in softwareNone. Done in software |
| Input Voltage | 12V DC12V DC |
| Inputs | CVBS, HDMI, VGACVBS, HDMI, VGA |
| Monitor Dimensions | 36.4 cm x 35.6 cm x 57 mm14.33 in x 14.02 in x 2.24 in |
| Monitor Mounting | VESA100 with additional 3-8"-16 camera support fixingsVESA100 with additional 3-8"-16 camera support fixings |
| Monitor Size | 17"17" |
| Monitor Weight | 0.32 kg0.71 lb |
| Power Consumption | 30W max30W max |
| Power Supply | 90-264V AC 50/60Hz input, 12V DC, 3A max. output90-264V AC 50/60Hz input, 12V DC, 3A max. output |
| Rail Fixings | 3/8"-16, with optional 1/4"-20 inserts3/8"-16, with optional 1/4"-20 inserts |
| Resolution | 1280x10241280x1024 |
| Series | ExplorerExplorer |
| System Dimensions | 50.3 cm x 42 cm x 67.8 cm19.8 in x 16.54 in x 26.69 in |
| System Weight | 9.2 kg20.28 lb |
| Warranty | 2 Years2 Years |
In The Box
- Monitor
- PSU
- Mounting rail with bracket set
- Camera carriage
- Monitor spine
- Medium hood
- Beamsplitter glass
- HDMI cable, 10m
- Explorer software license, 1 year
