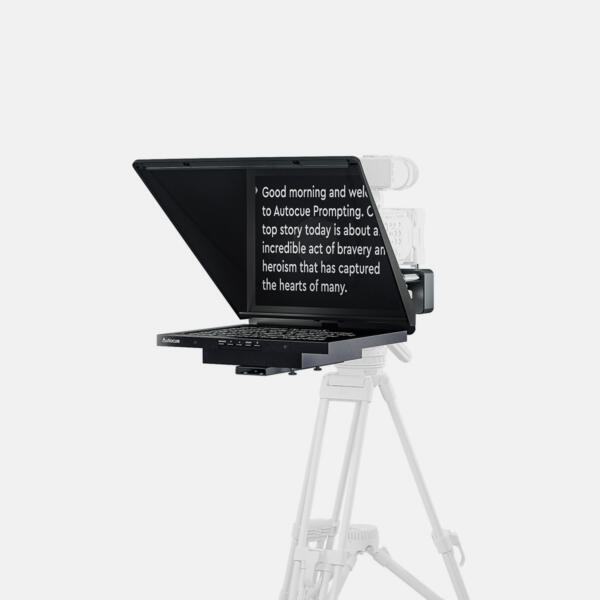

17″ Pioneer Portable Teleprompter
SKU: P7008-0902
- Medium-sized studio style prompter that travels well
- Adjustable mounting kit makes it simple to position the lens
- High brightness monitor can be used in any indoor or outdoor light
- Ready to integrate with a choice of input options
- Optional accessories include hard travel case with wheels
Find a local dealer
The 17” Pioneer Portable Teleprompter is designed for people on the move. The high spec monitor with a medium-sized hood gives you a studio style teleprompter that travels well and performs in every location. Its adjustable mounting kit makes sure that setup goes smoothly with simple tuning of the hood height so that the lens is always in the middle of the glass, and a counterweight is included to centre the load of the prompter on the camera support.
Pioneer Series packages include our highest spec monitors with a brightness that will out-perform any lighting situation to keep your presenter on-script. Like all Autocue monitors they have a strong metal housing ready to take years of hard work. We’ve selected a 17” monitor for this system because it’s a good size to transport and with around a 6m/20’ max reading range it’s big enough for most production spaces. With 3G-SDI, CVBS, VGA, and HDMI inputs to choose from you can be sure the prompter will integrate whether you have a single PC or a full broadcast facility.
The Pioneer Series Portable Teleprompter has our medium hood which allows for all but the widest angle lenses and packs more easily than its larger sibling. Formed from a lightweight composite, the hood holds Autocue 70:30 beamsplitter glass that clearly displays the text to the presenter while keeping it invisible to the camera. To protect your system on its travels we recommend the Pioneer Portable Prompter Case (P7018-1850), with hard shell and helpful wheels.
Display Size | 17" 17" |
Aspect Ratio | 4:3 4:3 |
Brightness | 1500Nits 1500Nits |
Contrast | 1000:1 1000:1 |
Resolution | 1280x1024 1280x1024 |
Connectivity | 3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA 3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA |
Image Flip | Horizontal & vertical Horizontal & vertical |
Input Voltage | 12V DC 12V DC |
Aux. Output | 12V DC, 3A max 12V DC, 3A max |
Power Consumption | 28W max 28W max |
Power Supply | 110-240V AC 50/60Hz input, 12V DC, 5A max. output 110-240V AC 50/60Hz input, 12V DC, 5A max. output |
Hood | Medium composite hood with collapsible fabric lens seal Medium composite hood with collapsible fabric lens seal |
Rail Fixings | 3/8"-16, with optional 1/4"-20 inserts 3/8"-16, with optional 1/4"-20 inserts |
Camera Carriage | Camera fixings: 2x 3/8"-16, 1/4"-20, Rod fixing: 2x 19mm rod fixings (studio standard 104mm pitch) Camera fixings: 2x 3/8"-16, 1/4"-20, Rod fixing: 2x 19mm rod fixings (studio standard 104mm pitch) |
Camera base to lens centre height supported | 50-140mm 1.96 - 5.51in |
Monitor Mounting | VESA100 with additional 3-8"-16 camera support fixings VESA100 with additional 3-8"-16 camera support fixings |
Counterweight mounting rods | 2x 19mm dia. 2x 0.75in dia. |
Counterweight | 5kg 11lbs |
Monitor Dimensions | 382 x 329 x 56mm 15 x 12.9 x 2.2in |
Monitor Weight | 3.7kg 8.2lbs |
System Dimensions | 503 x 420 x 729mm 19.8 x 16.5 x 28.7in |
System Weight | 10.5kg (excluding counterweight) 23.1lbs (excluding counterweight) |
- Monitor
- PSU
- Mounting rail with bracket set
- Camera carriage
- Monitor spine
- Medium hood
- Beamsplitter glass
- 19mm rod set
- 5kg counterweight
- HDMI cable, 10m
- UK/EU or US IEC power cable
