Navigator Plus Conference Package
SKU: P7008-0905
CURRENTLY UNAVAILABLE
-
Complete package ready to prompt straight out of the box
-
Simple setup
-
High brightness monitors suit any lighting conditions
-
SDI connection allows greater distance between operator and prompters
-
Includes a 12-month Pioneer Software license
Find a local dealer
Overview
The Navigator Plus Conference Package is ready for any event. Larger venues and tucked away operating positions are no issue because the monitors connect with SDI and a brightness of 1500 nits means that they’ll still be readable outside in the sunshine. In this system you also have Pioneer Software with our unique PowerPoint integration that triggers each slide as you prompt the script.
Our Navigator systems pack together everything you need to bring prompting to a venue. In the box you’ll find two monitors, two conference stands, a one-year Pioneer Software license and a ShuttleXpress hand control. It even includes all the cables you need to get started and a case to transport the system from one event to the next.

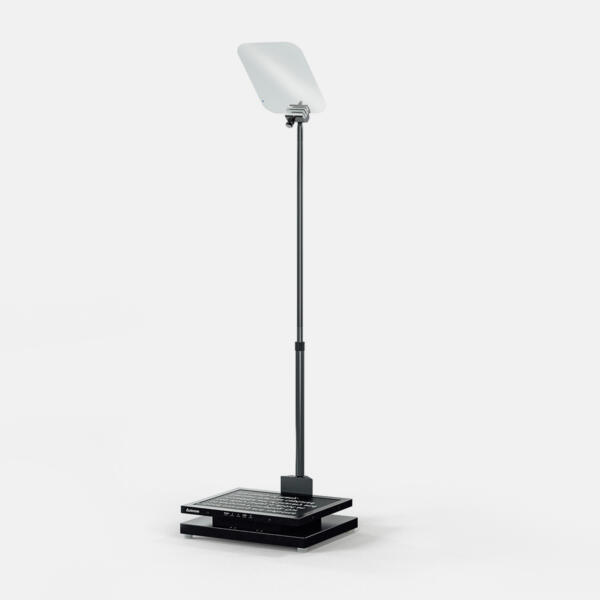

The monitors have a metal housing that’s lightweight and tough enough to survive for the long-haul. Simply rest them on the base of the conference stands and use the included adaptor to run an SDI cable to each one. The conference stand poles can be adjusted to place the glass at the perfect height to make the script visible to the speaker and you can be confident it will remain unseen by the audience thanks to Autocue 70:30 beamsplitter glass.
The Navigator Conference Package comes with a one-year license for Pioneer Software, our highest spec prompting application. If you’ve found your prompter of choice why not head over to our software pages to find out more and download a free trial.
Technical Specifications
| Adaptors | HDMI to 3G-SDI converterHDMI to 3G-SDI converter |
| Aspect Ratio | 4:34:3 |
| Base | 40 cm x 34 cm x 42 mm15.75 in x 13.39 in x 1.65 in |
| Brightness | 1500Nits1500Nits |
| Cables | 20m SDI, 2m SDI20m SDI, 2m SDI |
| Connectivity | 3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA |
| Contrast | 1000:11000:1 |
| Controller | ShuttleXpressShuttleXpress |
| Height | 98.5 cm to 218.7 cm38.78 in to 86.1 in |
| Input Voltage | 12V DC12V DC |
| Inputs | CVBS, HDMI, VGACVBS, HDMI, VGA |
| Monitor Fixing | VESA100, VESA75VESA100, VESA75 |
| Monitor Size | 17"17" |
| Power Consumption | 30W max30W max |
| Power Supply | 90-264V AC 50/60Hz input, 12V DC, 3A max. output90-264V AC 50/60Hz input, 12V DC, 3A max. output |
| Resolution | 1280x10241280x1024 |
| Series | NavigatorNavigator |
| Software | Pioneer, 1 year licensePioneer, 1 year license |
| Warranty | 2 Years2 Years |
| Weight | 7.6 kg (Each prompter)16.75 lb (Each prompter) |
In The Box
-
Monitor (2x)
-
PSU (2x)
-
UK/EU or US IEC power cable (2x)
-
BNC Cables, 2m, 20m
-
HDMI to SDI adaptor with HDMI cable
-
Telescopic beamsplitter pole (2x)
-
Adjustable beamsplitter mount(2x)
-
Beamsplitter glass (3x)
-
Pioneer software license pack, 1 year entitlement
-
ShuttleXpress controller
-
Transit case
